In this example it is assume you have some table and SAP Query knowledge.
We will use the standard SAP Query (tcode SQ01) to do the extraction.
Extraction Steps:
First get the purchase number and condition type the user wish to extract.
Here, the purchase order item condition type is store in the cluster table KONV
The problem is Cluster table cannot be used in SAP Query but there is a way to over this.
So, we found the key fields linkage:
EKKO-KNUMV - Number of the document condition
KONV-KNUMV - Number of the document condition
We can now proceed to the query tcode SQ01
SQ01 – Environment – Info Set
Create a Join table:
EKKO-EBELN – Purchasing Document Number
EKPO-EBELN - Purchasing Document Number

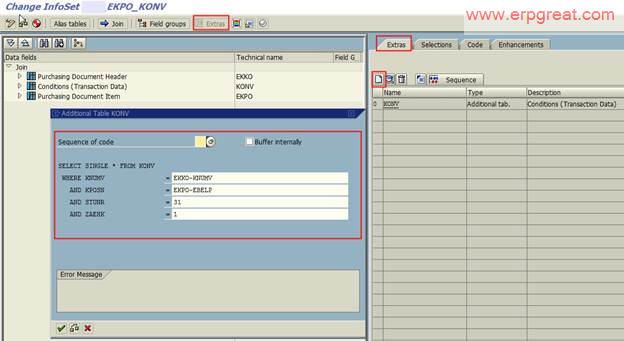

Now for Cluster table KONV, click Extras button and then Create
KONV-STUNR and KONV-ZAEHK is taken based on the user condition type where each of them is assigned with a unique number.
SELECT SINGLE * FROM KONV
WHERE KNUMV = EKKO-KNUMV
AND KPOSN = EKPO-EBELP
AND STUNR = 31
AND ZAEHK = 1
Save and now you can create the query together with the Cluster table KONV
